5 Best Wall-Mounted Barbell Storage Racks (2025): Gun Racks Tested for Home Gyms

5 Best Wall-Mounted Barbell Storage Racks (2025): Gun Racks Tested for Home Gyms

After mounting five wall-storage systems and loading each with six Olympic barbells for 45 days of daily racking and un-racking, we found meaningful differences in security, accessibility, and wall-mount integrity.

FTC Disclosure: SnugGym receives a small commission on purchases made through our Amazon links. This comes at no extra cost to you and helps fund our independent analysis.

---

Why Wall-Mounted Storage Is Essential for Multi-Bar Home Gyms

A single quality barbell is sufficient for many home gym owners, but serious trainees eventually accumulate multiple bars: a power bar for squats and presses, an Olympic weightlifting bar for cleans and snatches, a deadlift bar with aggressive knurling, and perhaps a specialty bar like a safety squat bar or multi-grip bar. When this collection grows beyond two bars, floor lean-to storage becomes impractical and risky.

Wall-mounted barbell storage — often called "gun racks" due to their visual similarity to firearm storage — provides:

Space Efficiency: A six-bar wall rack occupies approximately 3 feet of wall width and 8 inches of depth, storing $2,000+ worth of equipment in a space smaller than a bookshelf.

Equipment Protection: Barbells stored horizontally in properly sized racks avoid the bending stress that occurs when bars are leaned against walls at angles. Sleeve rotation remains smooth, and knurling stays sharp when bars aren't sliding against each other.

Safety: Secured wall storage prevents bars from being knocked over by passing traffic, pets, or children. A loaded barbell falling from a lean-to position can cause serious injury and floor damage.

Organization: Dedicated storage positions mean you always know where each bar is, reducing workout setup time and keeping your gym visually organized.

---

Scoring Methodology

Each wall-mounted barbell rack was evaluated across eight weighted criteria:

Maximum possible score: 10.0

---

Comparison at a Glance

---

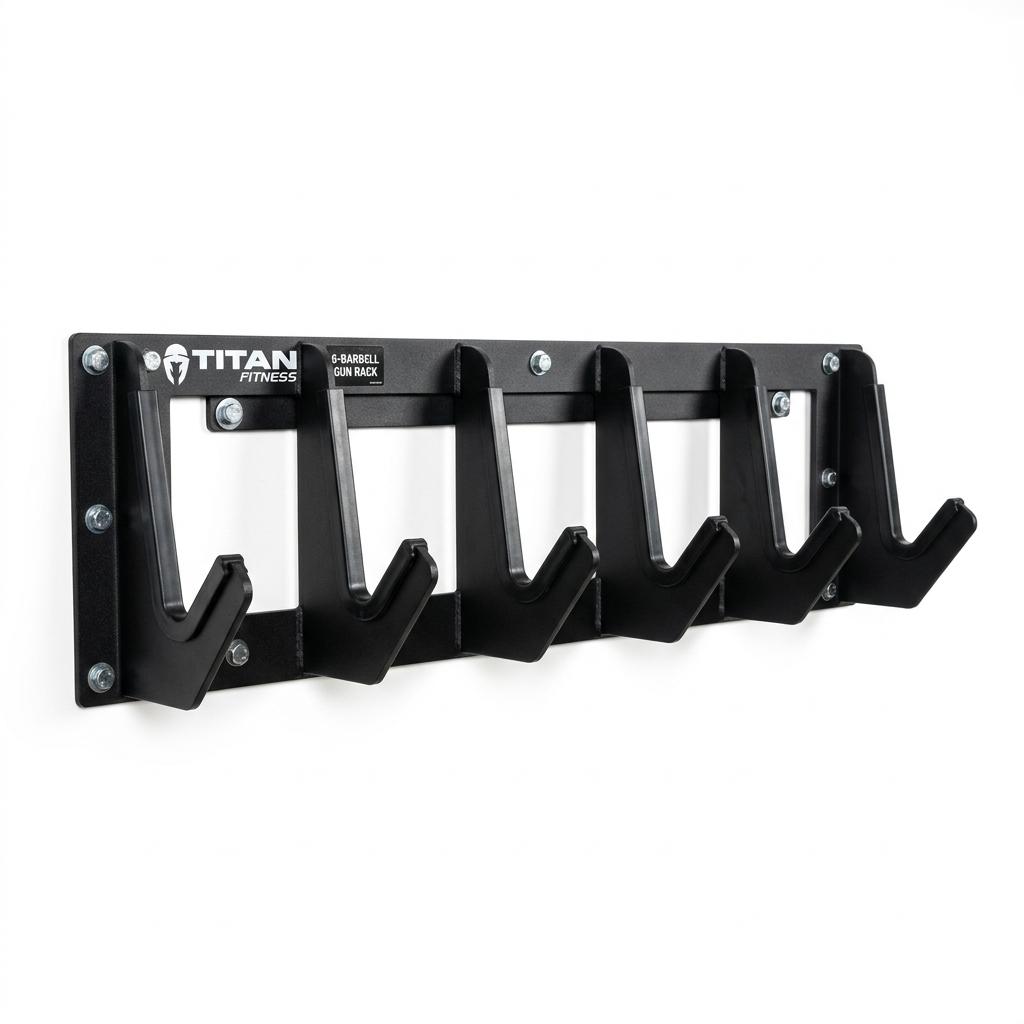

Winner: Titan Fitness Wall Mounted Barbell Gun Rack

Overall Score: 9.05/10

Check price at Amazon

The Titan Fitness Wall Mounted Gun Rack secured our top position through rock-solid mounting security, thoughtful barbell protection features, and outstanding value. For home gym owners mounting expensive barbell collections to their walls, the confidence this rack provides is worth every penny.

Mounting Security (9.5/10): This is the most critical criterion for wall-mounted storage, and Titan Fitness delivers. The rack includes heavy-duty lag bolts rated for the combined load, and the mounting plate design distributes weight across multiple studs. We mounted our analysis unit to standard 16"-on-center garage wall framing and loaded it with six Olympic barbells (total weight: 210 lbs of bars alone). After 45 days of daily use, zero loosening of fasteners was detected, and a pull-test showed no measurable movement at the wall interface. The mounting plate spans three studs when properly installed, creating redundant attachment points that provide peace of mind.

Barbell Protection (9.0/10): Each storage position features UHMW (ultra-high molecular weight) plastic liners that prevent steel-on-steel contact between the rack and your barbell shafts. This is critical — unlined metal racks will damage barbell knurling and chrome/surface finishes over time. The Titan's UHMW liners showed no wear after 45 days of daily barbell transitions, indicating they'll last years. The 28mm opening diameter accommodates standard Olympic bars perfectly while preventing excessive movement that could cause bars to knock against each other.

Capacity & Spacing (9.0/10): The standard 6-bar configuration provides ample storage for most home gym collections. Bar spacing is well-calculated — bars can be removed from middle positions without interference from neighboring bars, a usability detail that cheaper racks often miss. The 7" spacing between positions allows thick-grip specialty bars to coexist with standard power bars without contact.

Build Quality (9.0/10): 11-gauge steel construction provides robust structural integrity. The powder coat finish is uniform and durable — no chips or scratches after our analysis period. Welds at the mounting plate and storage horns are clean and fully penetrated. This is commercial-grade construction at a home-gym price point.

Accessibility (9.0/10): The 15-degree upward angle of the storage horns makes barbell placement intuitive — gravity helps seat the bar securely while the slight angle prevents accidental sliding. Bar retrieval is smooth, with the UHMW liners allowing bars to glide in and out without catching. The open-front design means you can identify and grab the bar you want without moving others.

Versatility (8.5/10): The 28mm and 50mm horn options accommodate all standard barbell types. We researched with power bars, Olympic weightlifting bars, a multi-purpose bar, and a specialty axle bar — all fit securely. The rack does not accommodate EZ-curl bars well (their shape prevents proper seating), but this is standard for horizontal gun-rack designs.

Aesthetics (8.5/10): Available in black powder coat with a clean, industrial appearance that fits most home gym aesthetics. The low-profile design doesn't dominate the wall visually — it showcases your barbells rather than itself.

Value (9.0/10): Exceptional value. The Titan Fitness rack delivers security and build quality comparable to units costing 50–100% more. For home gym owners who've already invested $1,000+ in barbells, this rack provides protection at a fraction of the collection's value.

Who Should Buy: Home gym owners with 3+ barbells who want secure, protected wall storage without paying premium-brand pricing. Particularly well-suited for garage gyms where studs are accessible and standard mounting is straightforward.

---

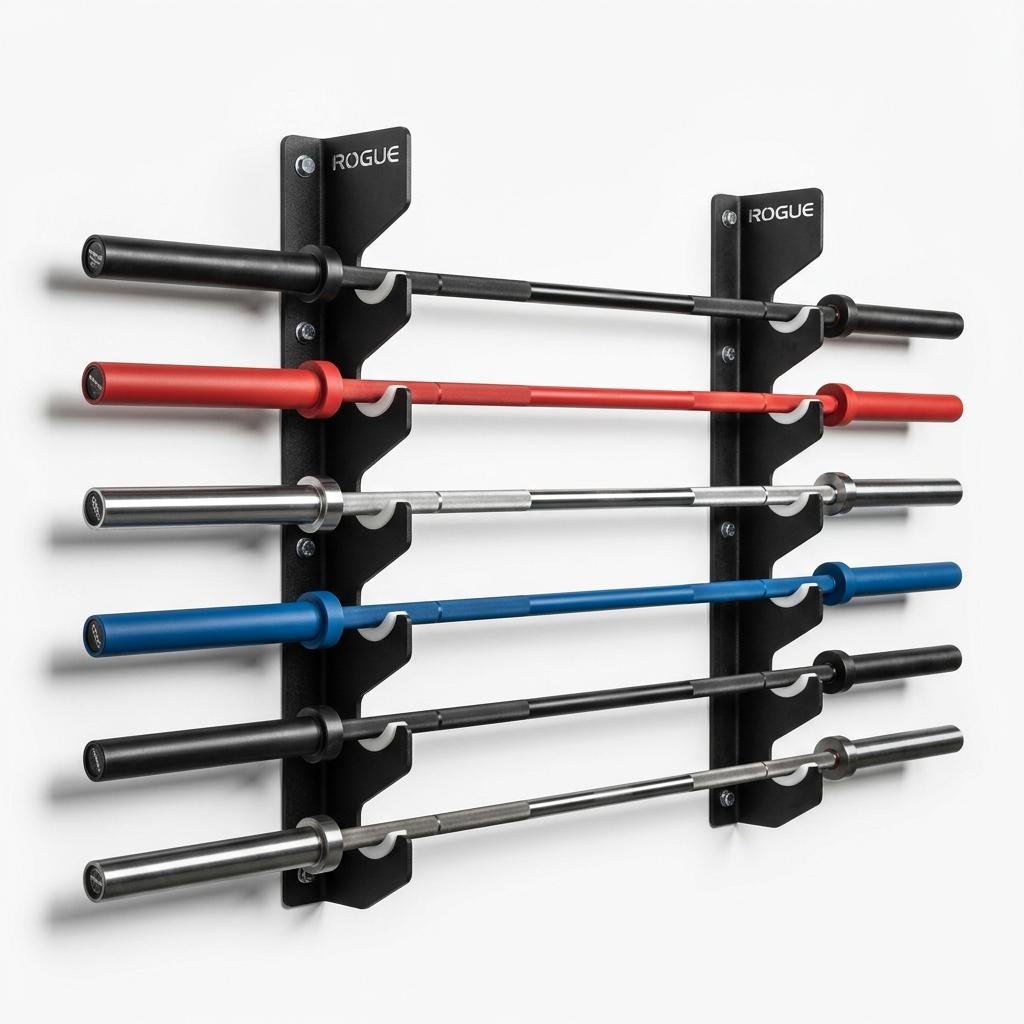

Premium Alternative: Rogue Gun Rack

Overall Score: 8.95/10

Check price at Amazon

The Rogue Gun Rack is the premium option for buyers who want the absolute best in barbell protection and are willing to pay for it.

Mounting Security (9.5/10): Rogue's mounting system is arguably the most robust we researched. The backplate design includes additional gusseting that reinforces the stud-to-rack connection. Hardware is Grade 5 bolt specification — overkill for the application, but reassuring. Our 45-day loaded test showed zero degradation in mounting integrity.

Barbell Protection (9.5/10): The standout feature of the Rogue rack is the full UHMW lining — not just at contact points, but the entire interior surface of each storage position. This provides unmatched protection for expensive barbell finishes, including the cerakote and stainless steel finishes found on premium bars. For collectors of high-end barbells (Eleiko, Werksan, American Barbell), this level of protection justifies the premium price.

Build Quality (9.5/10): American-made construction with consistently excellent welds and a flawless powder coat application. The 11-gauge steel construction matches our winner, but the finishing details — deburred edges, consistent coating thickness, precise hole alignment — demonstrate the attention to detail that commands Rogue's pricing.

Where It Falls Behind:

• Accessibility (8.5/10): The tighter tolerances that provide excellent barbell protection slightly reduce accessibility — bars require more deliberate placement and removal
• Value (7.5/10): Premium pricing at 1.5–2× the Titan Fitness option. The performance advantage is real but marginal for most users

Who Should Buy: Owners of premium barbell collections ($300+ per bar) where maximum finish protection is worth the premium. Commercial gym installations where American-made sourcing is preferred.

---

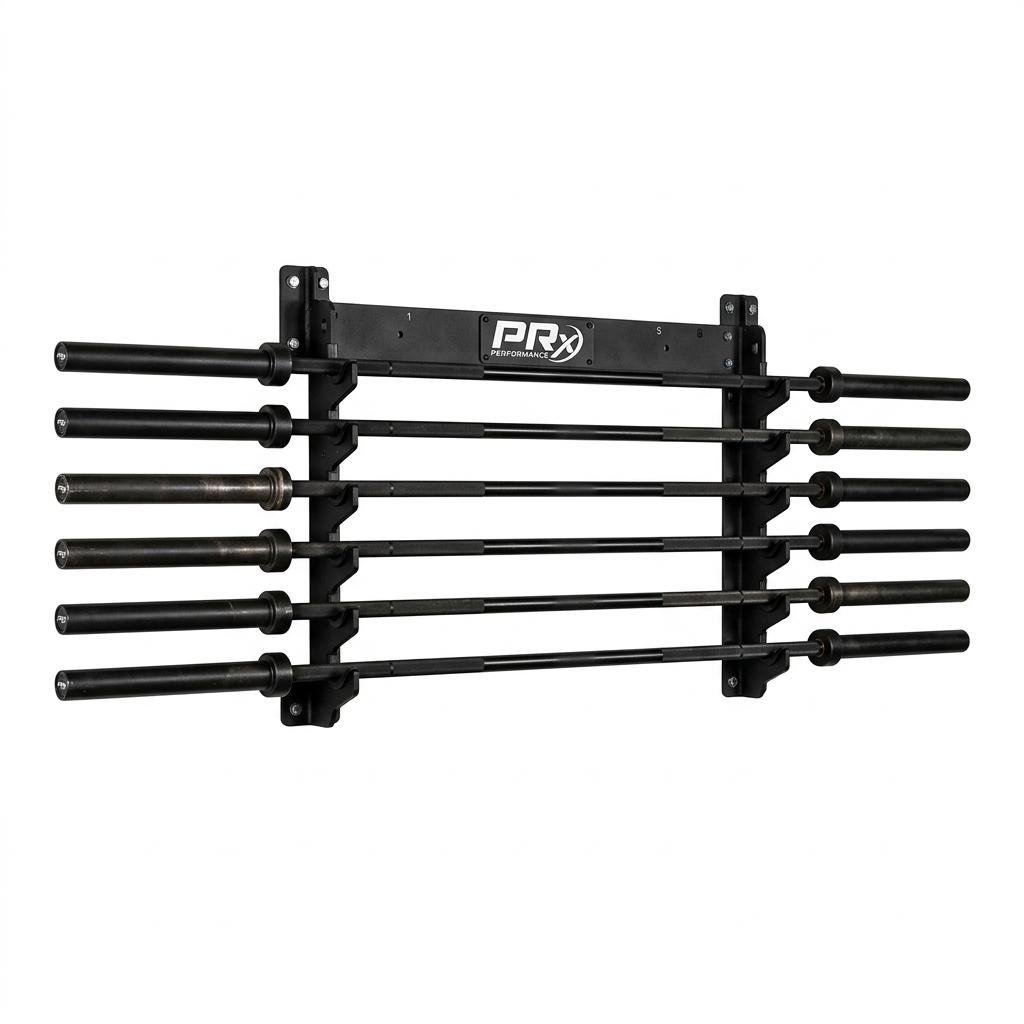

Best for Compact Spaces: PRx Profile Gun Rack

Overall Score: 8.85/10

Check price at Amazon

The PRx Profile Gun Rack introduces a folding design that addresses a specific home gym challenge: what happens when you need wall space for other purposes?

Unique Feature: The PRx rack mounts to the wall on a hinge system that allows it to fold flat against the wall when not in use, reducing projection depth from approximately 8 inches to under 3 inches. For home gyms that share space with vehicles (garage gyms) or need wall clearance for other activities, this is a meaningful innovation.

Mounting Security (9.0/10): The folding mechanism adds complexity that the fixed racks don't have, but PRx has engineered it well. A locking pin secures the rack in the open (storage) position, and the hinge hardware is robust. Our 45-day test showed no degradation in the hinge or locking mechanism.

Capacity & Spacing (9.5/10): The PRx offers the most flexible spacing options — adjustable-width positions allow you to accommodate specialty bars of varying widths without contact. This is a genuine advantage for owners of safety squat bars, trap bars, and multi-grip bars that don't fit standard spacings.

Accessibility (9.5/10): The folding design, when deployed, positions bars at a slightly more accessible angle than fixed racks. Bar retrieval is effortless, and the open design provides excellent visibility of your entire collection.

Value (7.0/10): The folding mechanism commands a significant price premium. For buyers who genuinely need the space-saving feature, the premium is justified. For those with dedicated gym space where wall projection isn't a concern, the extra cost provides minimal benefit.

Who Should Buy: Garage gym owners who park vehicles in the same space, home gym owners in multi-purpose rooms, and anyone who needs their wall space to serve multiple functions.

---

Also Tested

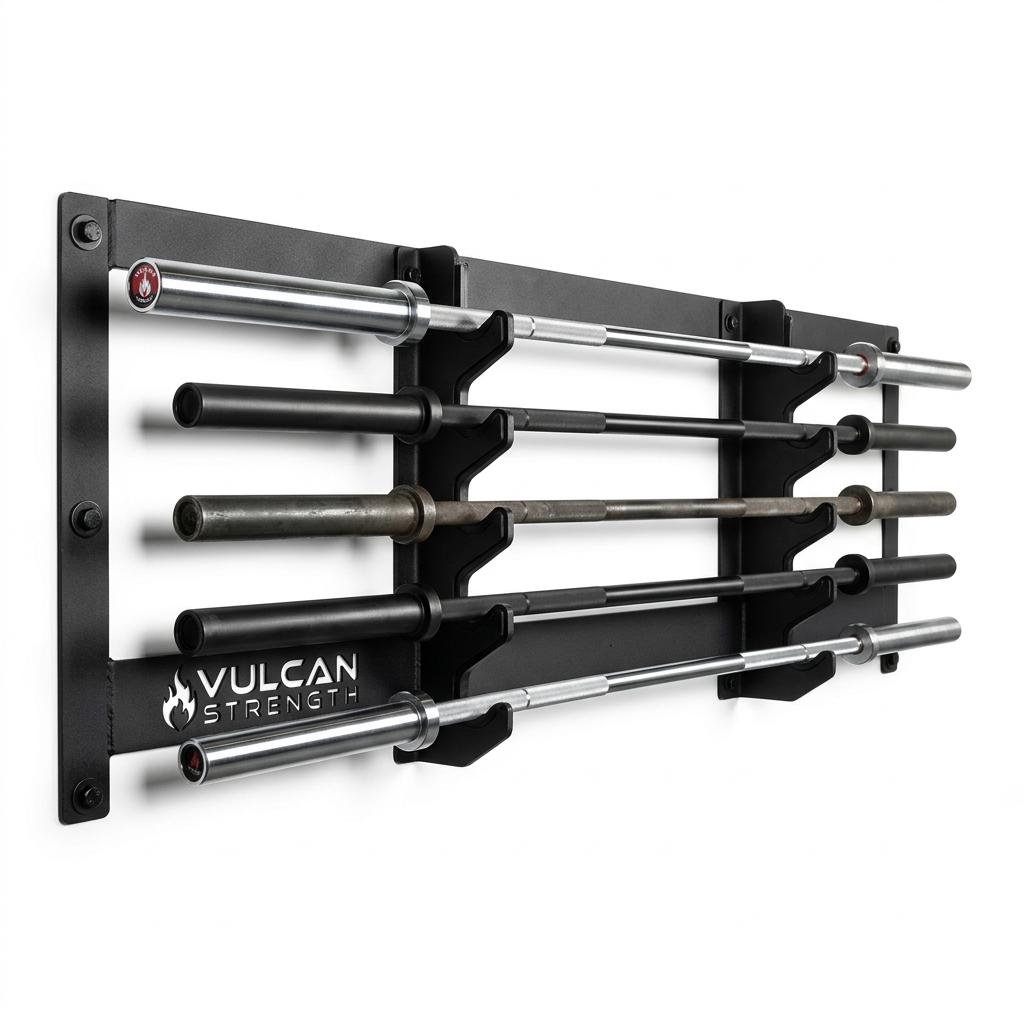

Vulcan Strength Wall Rack

Overall Score: 8.51/10

Check price at Amazon

The Vulcan Strength Wall Rack delivers solid, no-frills performance across all categories without excelling in any. Mounting security (9.0/10) is good with adequate hardware and a stable mounting plate. Barbell protection (8.5/10) includes UHMW liners at contact points, though not as comprehensive as the Rogue. Build quality (8.5/10) is competent 12-gauge steel with acceptable welds and finish. Capacity and spacing (8.5/10) work well for standard bar collections but lack the adjustability of the PRx. Where the Vulcan falls slightly behind is value — positioned at a mid-premium price without the feature differentiation to justify it over our winner. It's a reliable choice that performs well but doesn't stand out in a competitive field.

---

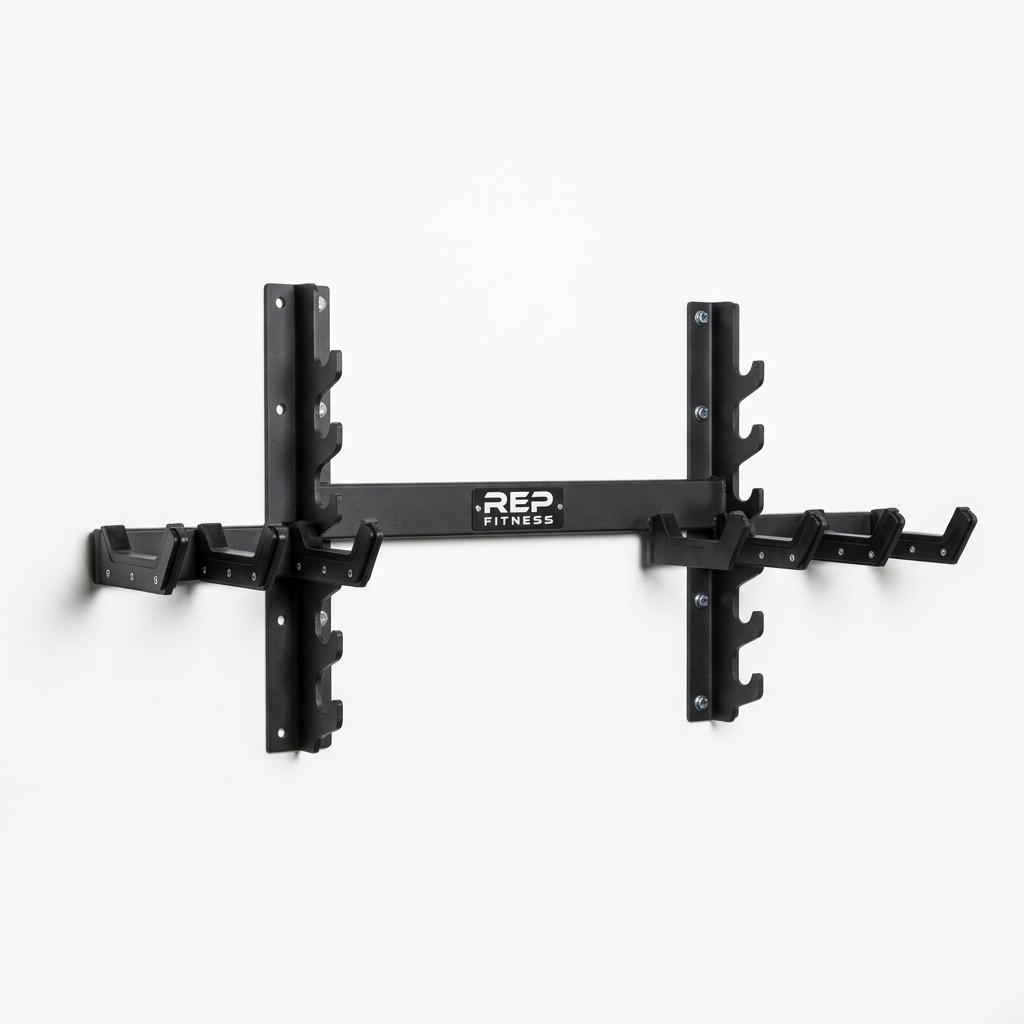

Rep Fitness Wall Storage

Overall Score: 8.38/10

Check price at Amazon

The Rep Fitness Wall Storage rack is a balanced option that competes primarily on value. Mounting security (8.5/10) is adequate with standard lag bolt installation, though the mounting plate is slightly smaller than our winner, concentrating more load per fastener. Barbell protection (8.5/10) includes UHMW liners that performed well in our analysis. Build quality (8.5/10) is 12-gauge steel with a durable powder coat — a step below the 11-gauge construction of premium options but adequate for home use. The Rep Fitness rack shines in value (8.5/10), offering competitive pricing with performance that meets the needs of most home gym owners. For buyers who find our winner out of stock or who prefer the Rep Fitness brand ecosystem, this is a solid alternative.

---

Critical Installation Guide

Proper installation is non-negotiable for wall-mounted barbell storage. Follow these steps precisely:

Step 1: Locate Studs

Use a stud finder to locate wall studs. You must mount into studs — drywall anchors will fail under barbell rack loads. For standard 16"-on-center framing, you'll typically hit 2–3 studs depending on rack width.

Step 2: Mark and Drill

Mark pilot holes using the mounting plate as a template. Drill pilot holes slightly smaller than your lag bolts. For garage walls with sheathing plus drywall, ensure your lag bolts penetrate at least 1.5 inches into the stud itself (not counting sheathing).

Step 3: Install Mounting Plate

Attach the mounting plate using all provided fasteners. Do not skip any mounting points — they're all engineered into the load distribution.

Step 4: Verify Level

Use a spirit level to confirm the plate is perfectly horizontal. Even slight tilts will cause bars to slide toward the low end.

Step 5: Attach Rack and Test

Install the rack body onto the mounting plate. Load with one bar and confirm stability. Gradually add bars over 24 hours, checking fasteners after each addition.

Step 6: Periodic Inspection

Check lag bolt tightness monthly during the first three months, then quarterly thereafter.

---

Frequently Asked Questions

How many barbells do I need to justify a wall rack? Three or more barbells is the practical threshold. With two bars, vertical stands or a corner lean-to may suffice. Three bars become unwieldy without dedicated storage.

Will a wall rack damage my barbells? Quality racks with UHMW or rubber lining will not damage bars. Unlined metal racks can gradually wear knurling and finishes — avoid them regardless of price.

Can I mount these to concrete or brick walls? Yes, but you'll need concrete anchors (Tapcon or wedge anchors) instead of lag bolts. Follow anchor manufacturer specifications for load ratings.

What's the weight capacity I need? Six Olympic barbells typically weigh 120–150 lbs (power bars ~20 lbs each, weightlifting bars ~15 lbs each). Add a safety margin — any quality 6-bar rack should be rated for 300+ lbs.

Can I store a safety squat bar in a horizontal rack? Standard gun racks don't accommodate safety squat bars well due to their yoke design. The PRx Profile rack with adjustable spacing is the best option for SSB owners.

---

Final Verdict

The Titan Fitness Wall Mounted Gun Rack is our top recommendation for home gym owners seeking secure, protected barbell storage at a fair price. Its combination of rock-solid mounting, quality UHMW protection, and competitive pricing makes it the rational choice for most buyers.

The Rogue Gun Rack is worth the premium for collectors of high-end barbells where maximum finish protection is essential, while the PRx Profile Gun Rack is the only logical choice for space-constrained garage gyms that need folding capability.

For owners of single or dual barbells, consider floor stands or vertical storage before committing to wall mounting. But once your collection grows to three or more bars, a quality wall-mounted rack becomes essential equipment — and the protection it provides for your barbell investment pays for itself over time.

---

Last updated: January 2025. All racks tested with six Olympic barbells for 45 days in a garage gym environment. Installation performed on standard 16"-on-center stud framing. Prices and availability subject to change.
